ADVANTAGES

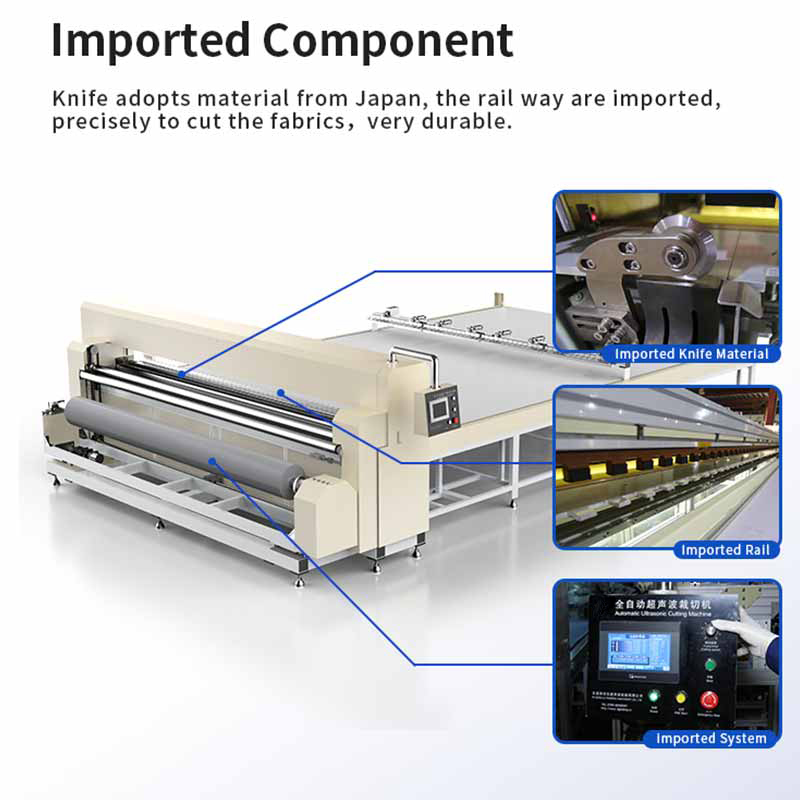

1.Using ultrasonic technology from Germany: SMS cylinder imported from Japan: Good quality rails from Taiwan stable and reliable.
2.The feature of this machine is seal edge of fabrics without roughthread comes out; it is suitable for roller binds, soft sheer blinds fabrics etc. especially suitable for production of same size and big orders of products.
3.Adopting PLC and touch screen as control center, easy operating.
4.Microcomputer touch screen, put desired product size and quality
(max set 5 sets of numbers), Machine will finish the work one by one according to what put inside of the computer by pressing start button; finished and unfinished data presented on the screen.
5.Precise in cutting with 2 mm miss.
6.High speed and efficiency, saving labor; output 3-9 pcs per minute.

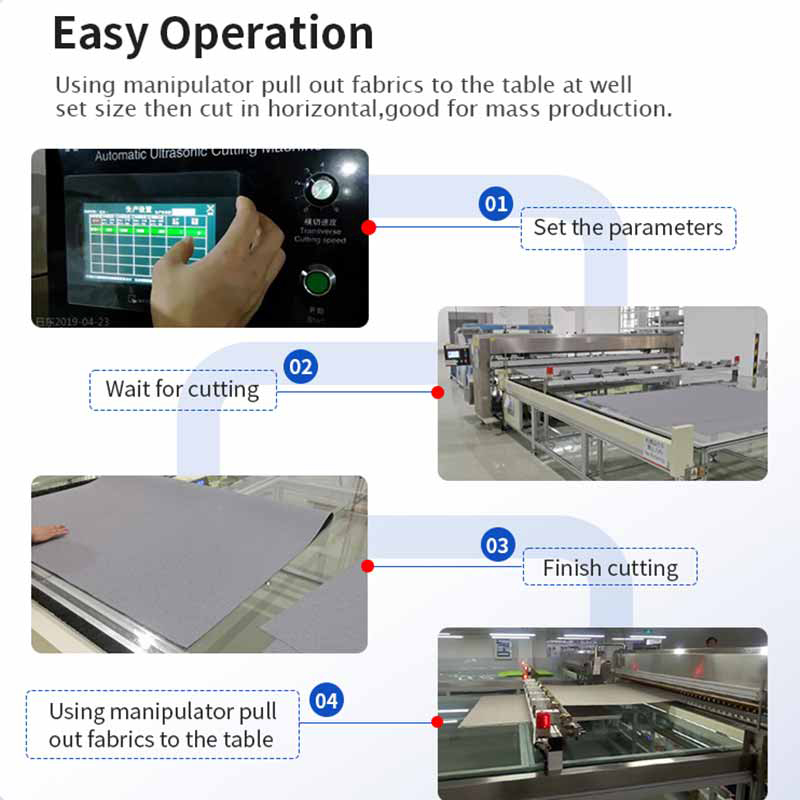

7.Using manipulator pull out fabrics to the table at well set size then cut in horizontal, good for mass production.
8.Has tension device and edge correcting system.
9.Using Servo motor automatically adjusting knives in slitting fabrics, precisely and accurately.
10.Has lights under the table when feeding fabrics to check the quality of the fabrics.

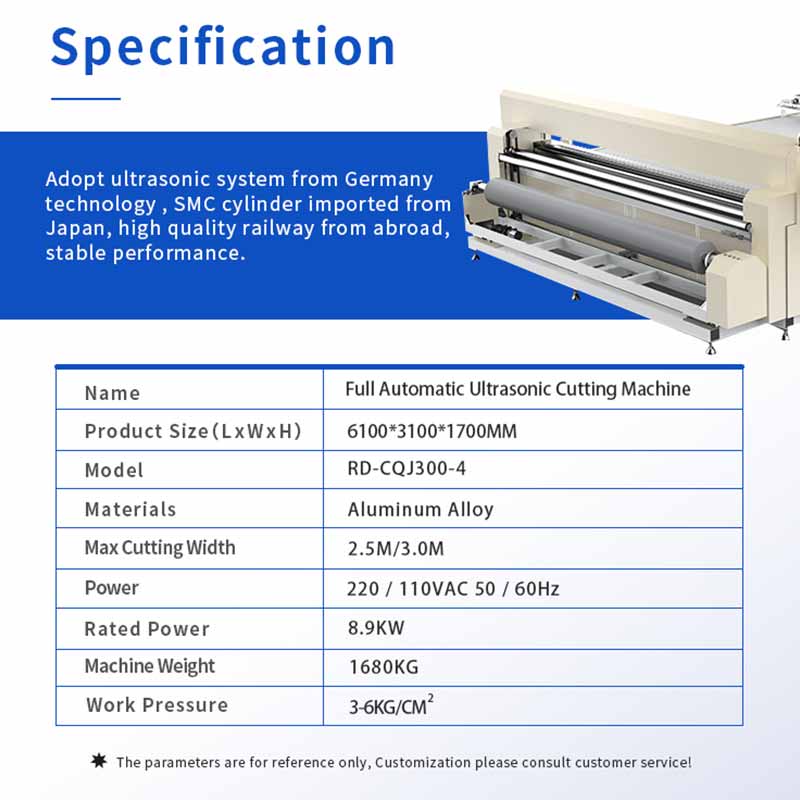

TECHNICAL SPECIFICATIONS
Machine model：RD-CQJ300Q-4
Max cutting width：2.5m/3.0m（customizable）
Rated voltage：220/110VAC50/60Hz
Rated power：8.9KW
Air pressure：3-6KG/cm2
Machine Size：6100*3100*1700mm
Machine weight：1680KG
