ADVANTAGES

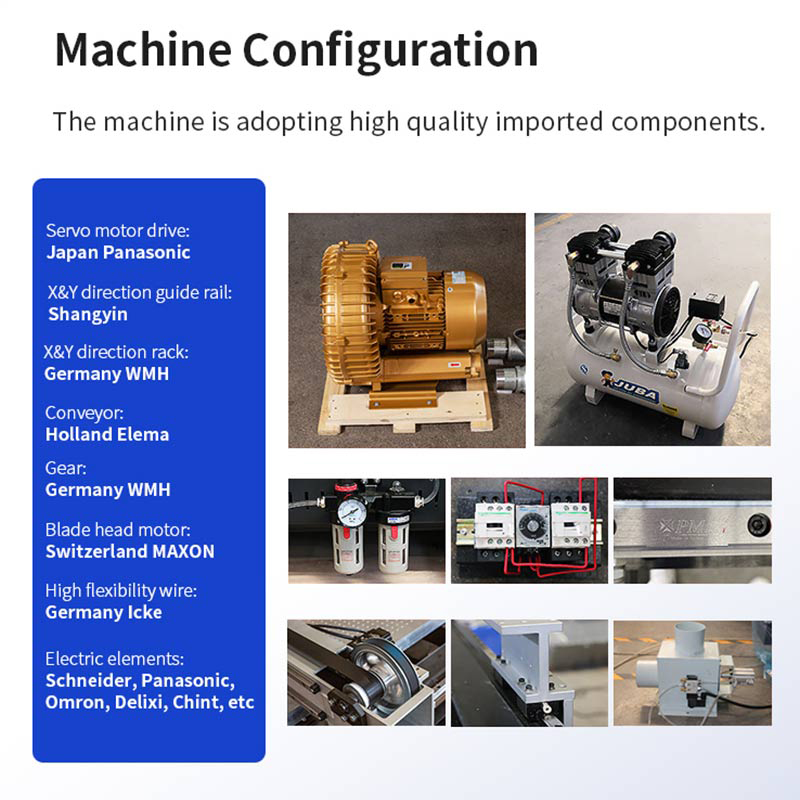

1.Adopt Japanese servo motor and drive, Taiwan high quality guide rail, German rack and so on Imported parts.
2.Infrared induction safety device: adopts horizontal and vertical anti-collision protection to ensure no dead angle exposure and effectively protect the safety of operators.
3.Equipment automatic feeding, with full pressure cloth plate
4.With a large visual camera cutting function, used for edge positioning and cutting
5.Electrical components: Schneider, Panasonic, Omron, Delixi, Chint, etc.
6.The equipment is double-drive and double-touch, with fast speed and high stability, and can adapt to 24-hour uninterrupted work
7.Safety device: infrared induction anti-collision device, emergency stop button device
8.Knives: Drag knife, half-cut knife, round punch, line drawing pen, vibrating knife, pneumatic knife, oblique knife, high-quality round knife
TECHNICAL SPECIFICATIONS
Machine model: RD-CCQJ300
Rated power: 2.5KW
Rated voltage: 380V
Machine weight: 1800KG
Cutting speed: 100-3000mm/s
Translation speed: 100-3000mm/s
Cutting thickness: 0.1-25mm
Cutting accuracy: ±0.1mm
Fixing material method: vacuum pump adsorption
Transmission interface: Ethernet, USB, offline operation
Support software format: PLT, DXF and other formats
Working size: 3200mm*6000mm(L*W) can be customized
